Description

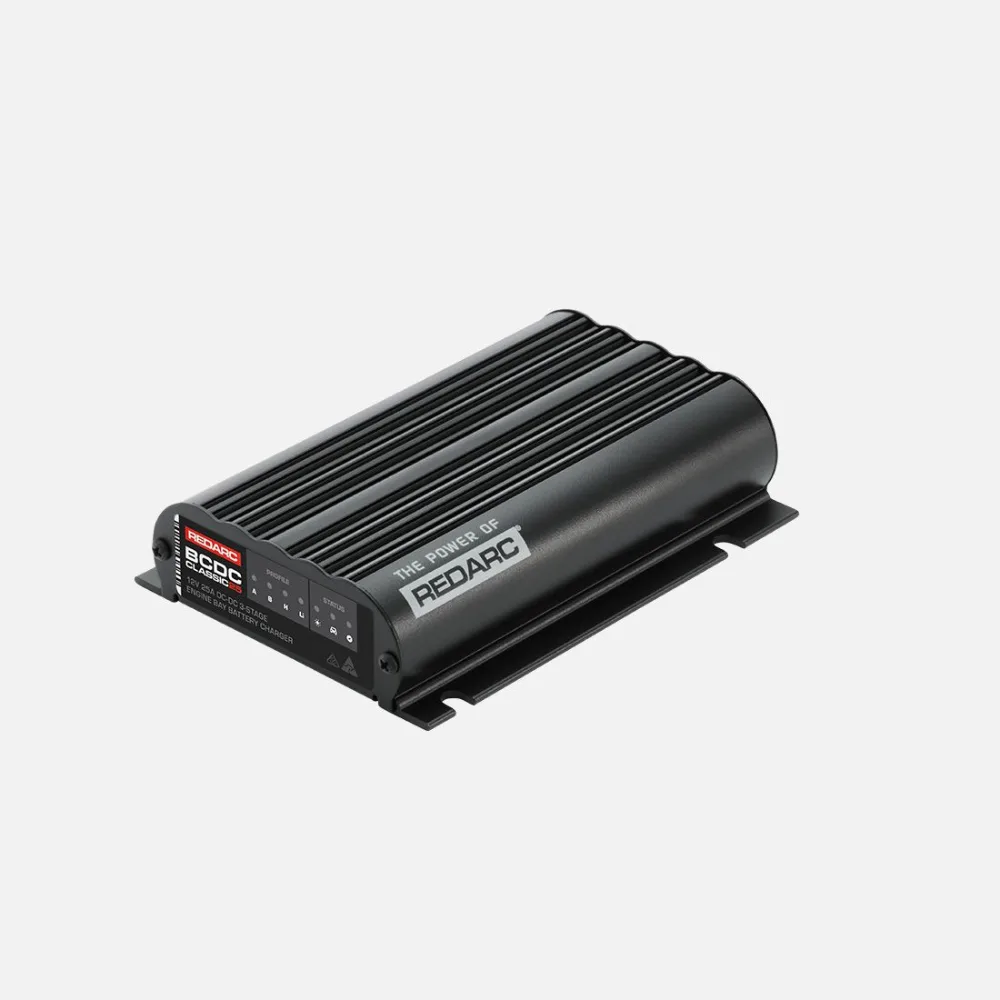

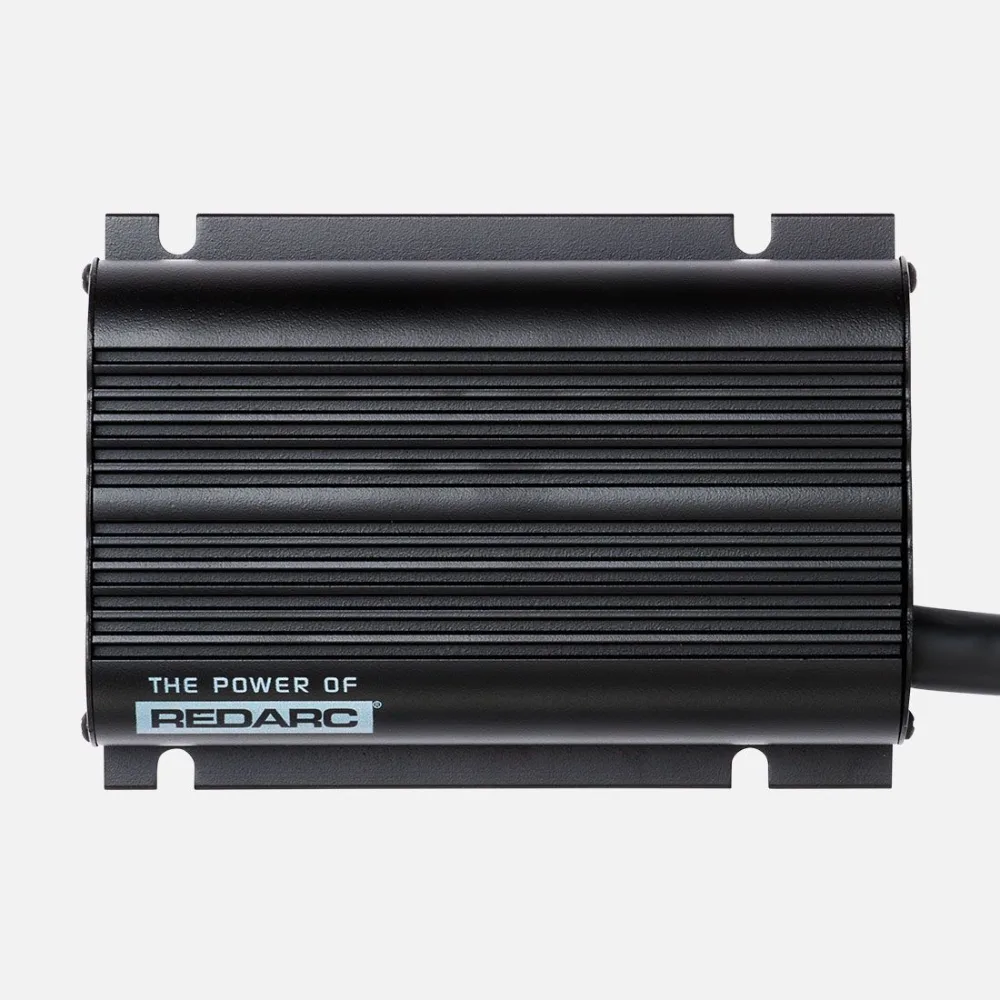

The REDARC BCDC1225D under bonnet Battery Charger is a 12V 25A DC to DC battery charger, capable of high performance in engine bay installations, potted to survive and thrive against heat, water and dust.
Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1225D Classic will charge from both solar and the alternator simultaneously. And, with built-in ‘Green Power Priority™’ it will select solar charging first, meaning less load on the alternator.
Suitable for 12 or 24-volt vehicle systems, the unit will also work with either standard or variable/smart alternators.
The BCDC1225D features the same patented charging profiles as it’s predecessor along with a new lithium charging profile making the unit suitable for charging AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries, perfect for pairing with a REDARC Lithium battery.
For most applications, the BCDC1225D is suitable for battery bank sizes of 75-200AH. For higher capacity needs of over 200AH, REDARC recommends the BCDC1240D.
The award-winning technology in the BCDC has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.
Built in Australia and tested for our unique conditions, the DC to DC battery charger will work in the extreme heat of the Simpson Desert, up to 80°C and can handle deep water crossings at Cape York – water, dust and vibration are no match for this charger.
If you’re heading out into the bush and want to get there and back again safely – you can trust REDARC.
Features
- Separate DC and solar charging inputs
- Maximises the performance and life of your auxiliary battery
- Simultaneous DC and solar charging with Green Power Priority™
- Suits 12V/24V standard and variable voltage/smart alternators
- Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
- Suitable for use on vehicles with conventional alternator charging systems
Specifications
| Warranty | 2 Years |
| Battery Chemistry | Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only |
| Nominal Output Power | 375W |
| Input Fuse Rating | 40A (Not supplied) REDARC FK40 recommended |
| Solar Switch On Voltage | 9V |
| Solar Input Voltage | 9 – 32V |
| MPPT Solar Regulator | Yes |
| Cabin/ Canopy Install | Yes |
| No Load Current | <100mA |
| Trailer Install | Yes |
| Engine Bay Install | Yes |
| Max. Charging Voltage | 15.3V |
| Output Fuse Rating | 40A (Not supplied) REDARC FK40 recommended |
| Operating Temperature | -20°C to 80°C |
| Output Voltage | 12V DC |
| Max. Rated Output Current | 25A |
| Input Voltage | 9 – 32V |
| Standby Current | <8mA |
| Connector Type | Bare wire |
| Weight | 1 kg |
| Width | 120 mm |
| Height | 37 mm |
| Length | 165 mm |
Needed for installation (sold separately): REDARC 60A fuse kit (FK60) for the input and output, plus suitable cable. Pair it with a dual battery tray and a lithium battery for a complete setup.
Fitting
REDARC recommends installation by a qualified auto electrician. Our Melbourne workshop can install your complete dual battery system. Contact us for a fitted quote.
