Description

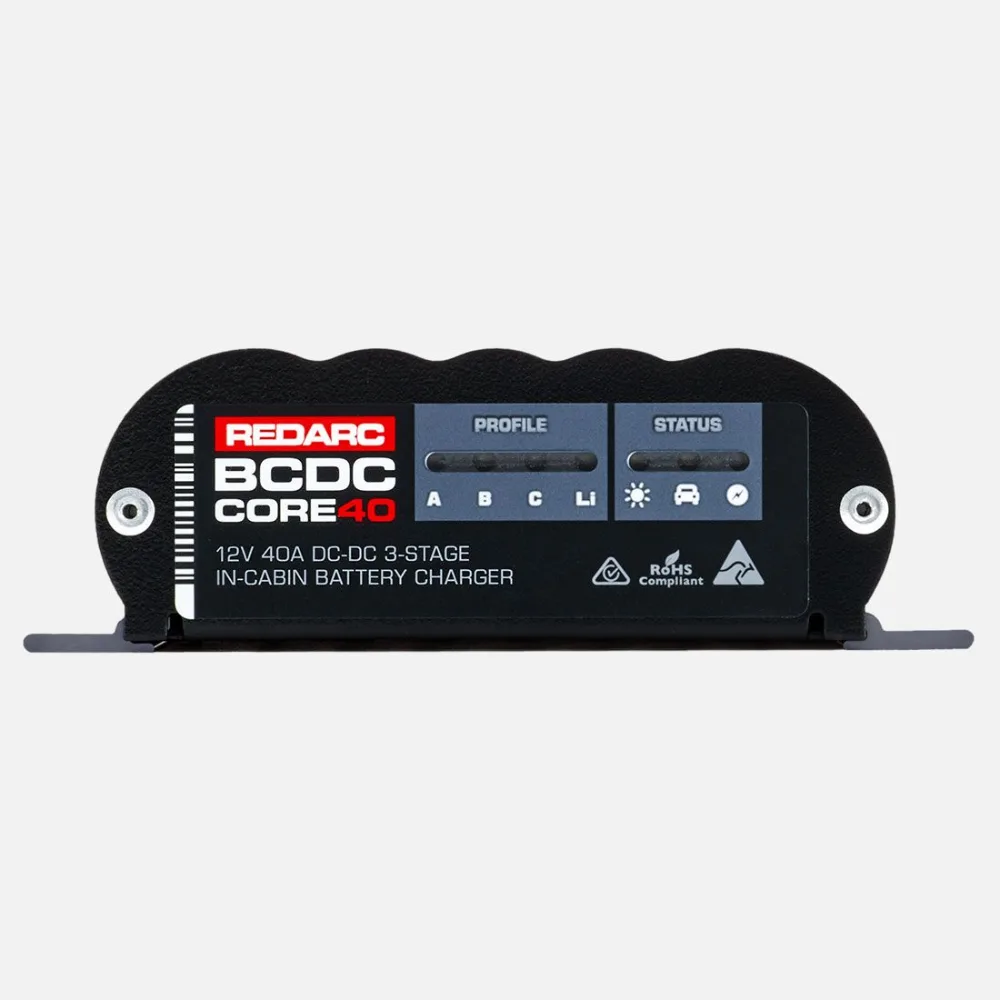

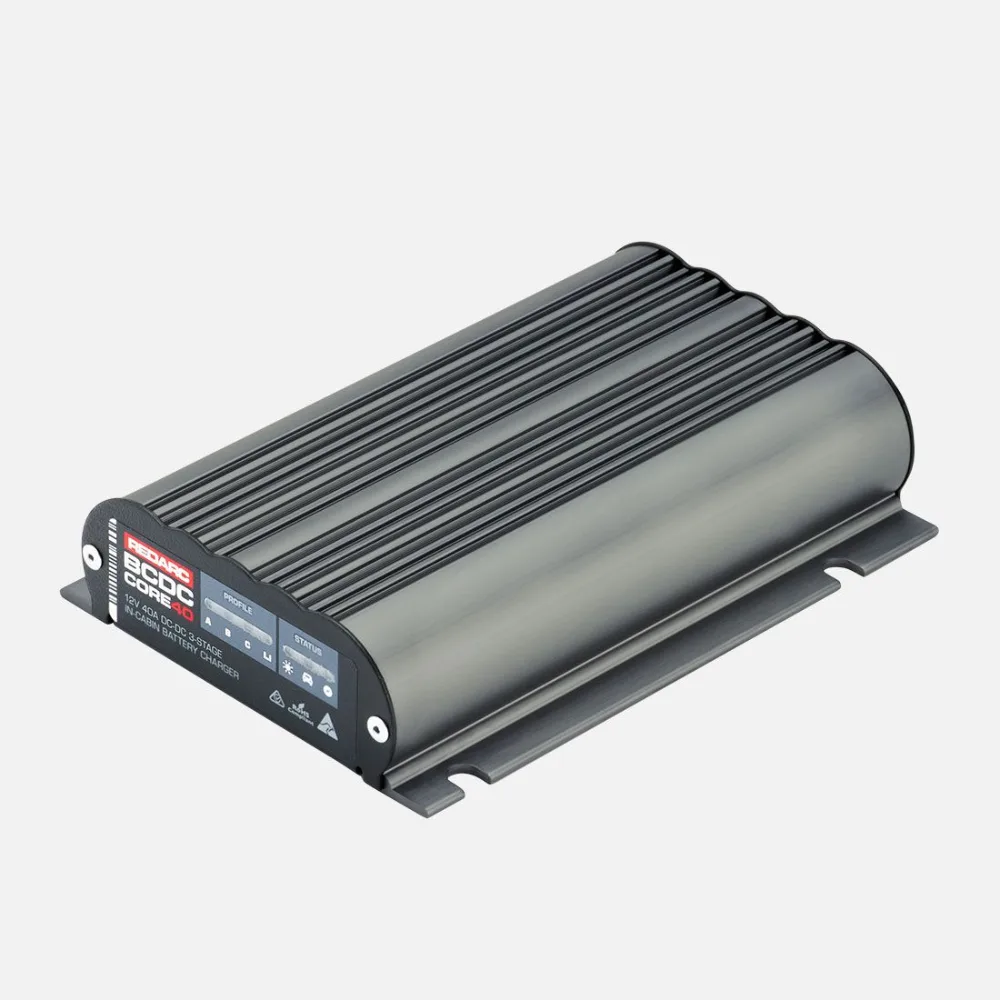

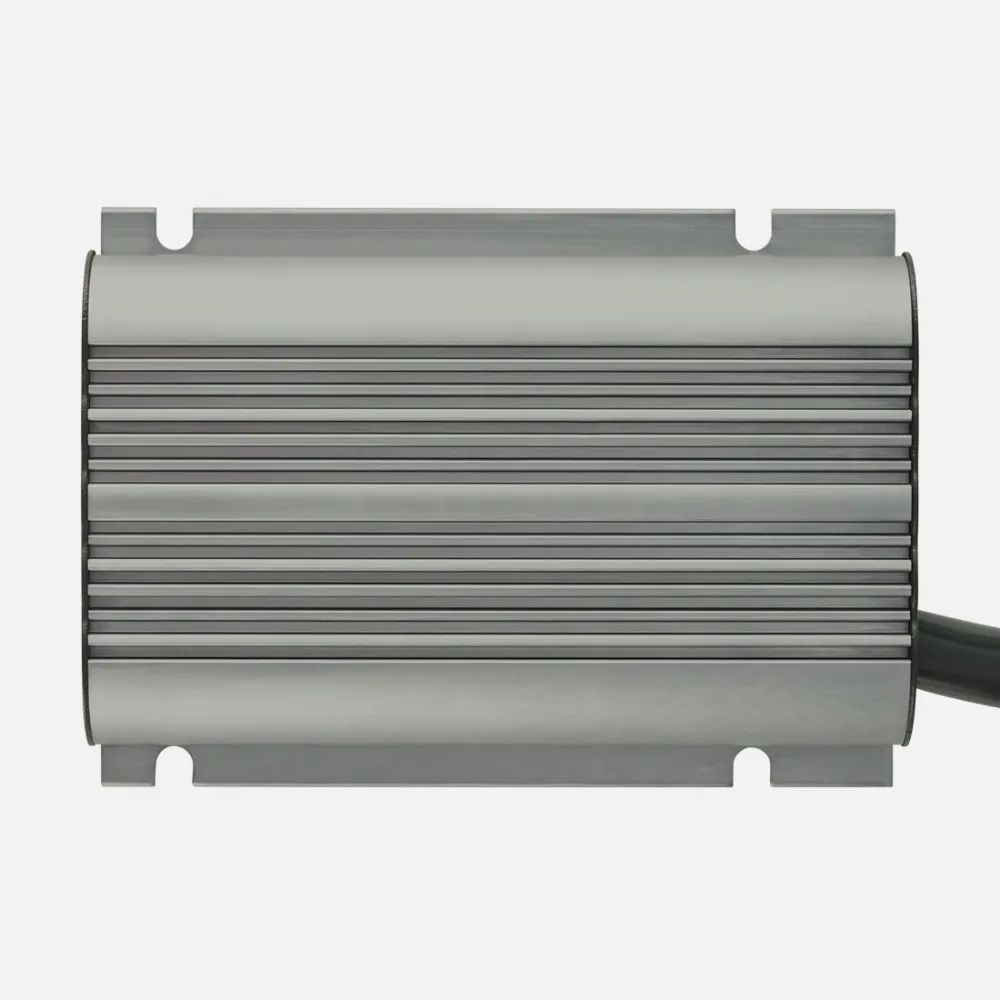

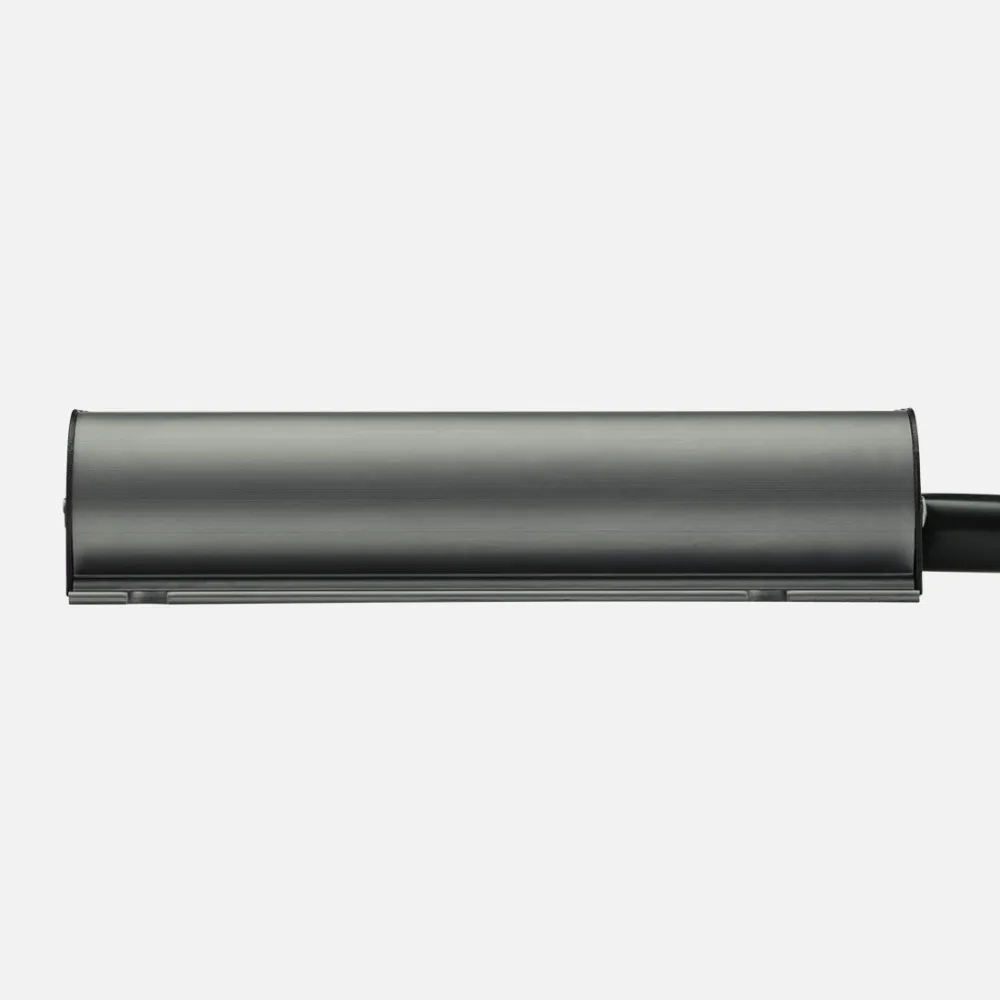

REDARC’s BCDC Core 40A DC to DC In-Cabin Battery Charger is the next evolution of the legendary BCDC platform that has been powering off-grid adventures for over 10 years.
The BCDC Core is the perfect DC to DC charging solution for in-cabin, canopy, or battery box setups where dust and weatherproofing isn’t required. Each BCDC Core features REDARC’s tried and tested dual input DC charging tech plus an MPPT solar regulator and Green Power Priority™ all in the familiar and compact BCDC form factor. These features allow the BCDC Core to efficiently charge from both the alternator and solar simultaneously, ensuring maximum charge capacity no matter the situation.
Installing under the bonnet? See the REDARC BCDC Classic under-bonnet chargers in our dual battery range.
The BCDC Core features a Maximum Power Point Tracking (MPPT) solar regulator and ‘Green Power Priority™’. With these features the BCDC Core will charge from both solar and the alternator simultaneously, maximising its charge rate and minimising the load on your alternator, saving fuel.
With no loud fans or relays and a small form factor, the BCDC Core can be tucked away, leaving room in the cabin for more important things. Don’t ruin the look of your interior with bulky electronics. Hide it under the rear floor, behind a side panel or under the seats and make your power set up look like it was meant to be there.
With chemistry specific charging profiles, including lithium the BCDC Core ensures your batteries are ready for your next adventure. The award-winning technology in the BCDC Core has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.*As a guide the BCDC Core 40A is typically used for lead acid battery banks over 200Ah and lithium batteries over 100Ah. Check the manufacturer’s data for your battery and ensure that the ‘Continuous Current Rating’ of the charger does not exceed the manufacturer’s recommended maximum charging current. For smaller batteries, REDARC recommends the BCDC Core 25A.
*Large capacity battery banks may require a few cycles to fully charge.
The BCDC Core is designed, tested and manufactured in Australia and is backed by our leading technical support and national REDNetwork certified installer network.
If you’re heading out into the bush and want to get there and back again safely – you can trust REDARC.
Features
- Suitable for in-cabin and canopy installations only
- Compact form factor
- Simultaneous DC and solar charging with Green Power Priority™
- Maximises the performance and life of your auxiliary battery
- Suits 12V/24V standard and variable voltage/smart alternators
- Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
- Suitable for use on vehicles with conventional alternator charging systems
Specifications
| Continuous Rating | 40A |
| Max. Rated Output Current | 40A |
| Nominal Output Power | 600W |
| Input Voltage | 9 – 32V |
| Solar Input Voltage | 9 – 32V |
| Solar Switch On Voltage | 9V |
| Output Voltage | 12V DC |
| Max. Charging Voltage | 15.3V |
| Battery Chemistry | Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only |
| Operating Temperature | -15°C to 80°C |
| Input Fuse Rating | 60A (Not supplied) REDARC FK60 recommended |
| Output Fuse Rating | 60A (Not supplied) REDARC FK60 recommended |
| No Load Current | <100mA |
| Standby Current | <8mA |
| Connector Type | Bare wire |
| Weight | 900g |
| Length | 165 mm |
| Width | 120 mm |
| Height | 37 mm |
| Warranty | 2 Years |
Needed for installation (sold separately): REDARC 60A fuse kits (FK60) for the input and output, plus suitable cable. Pair it with a dual battery tray and a lithium battery for a complete setup.
Fitting
REDARC recommends installation by a qualified auto electrician. Our Melbourne workshop can install your complete dual battery system. Contact us for a fitted quote.
